SPORTY AND DYNAMIC
The perfect electric bike.

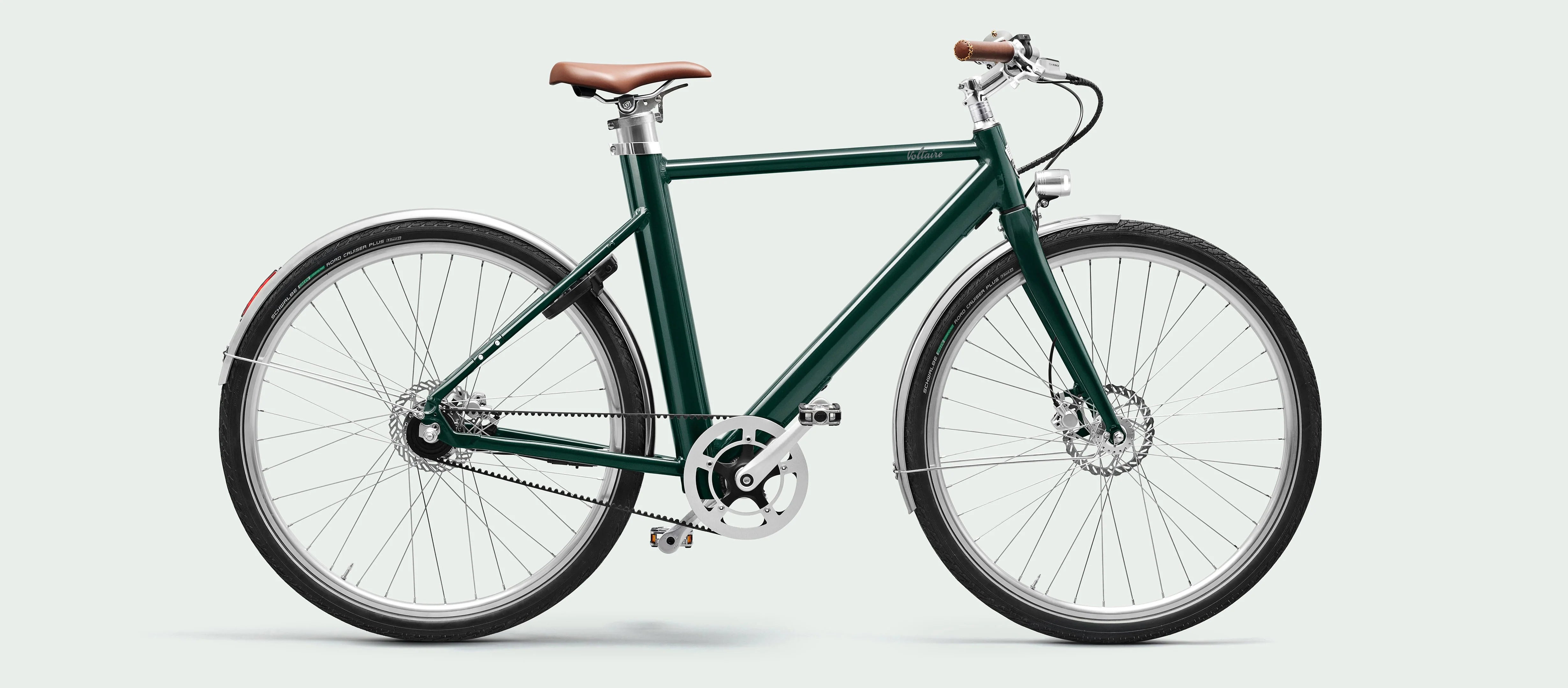

BEAUTIFUL
The Legendre is the athletic version of Voltaire bicycles, preserving the brand’s unique DNA and timeless design. Its chrome accents enhance its lines, while the electric assistance components such as the motor, battery, and sensor are subtly integrated to maintain its sleek silhouette.

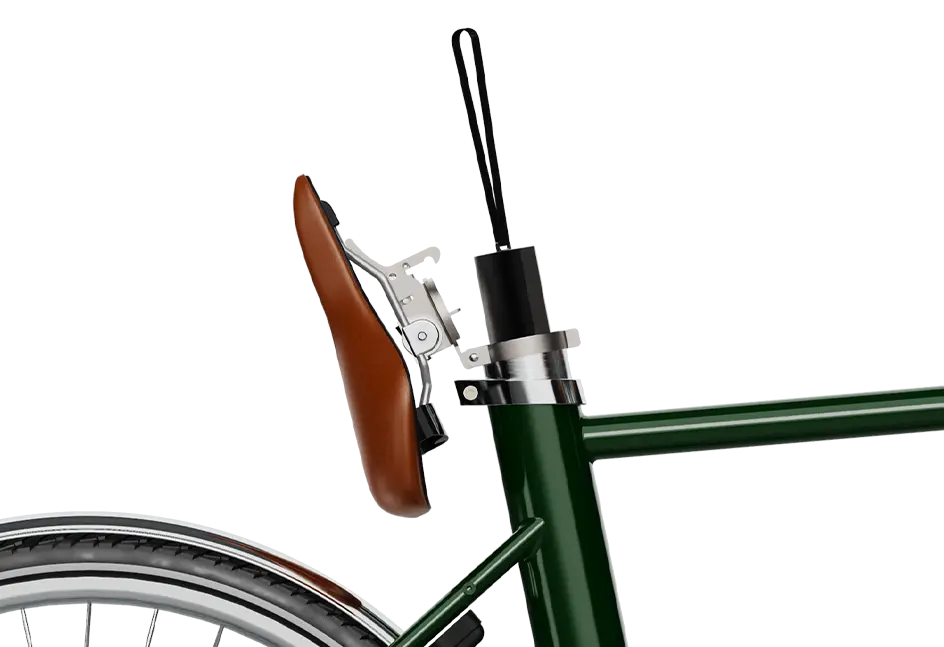

DYNAMIC
With a low centre of gravity and perfectly balanced weight distribution, including its battery positioned beneath the rider, the Legendre offers a dynamic ride that is ideal for maneuvering through the urban jungle.

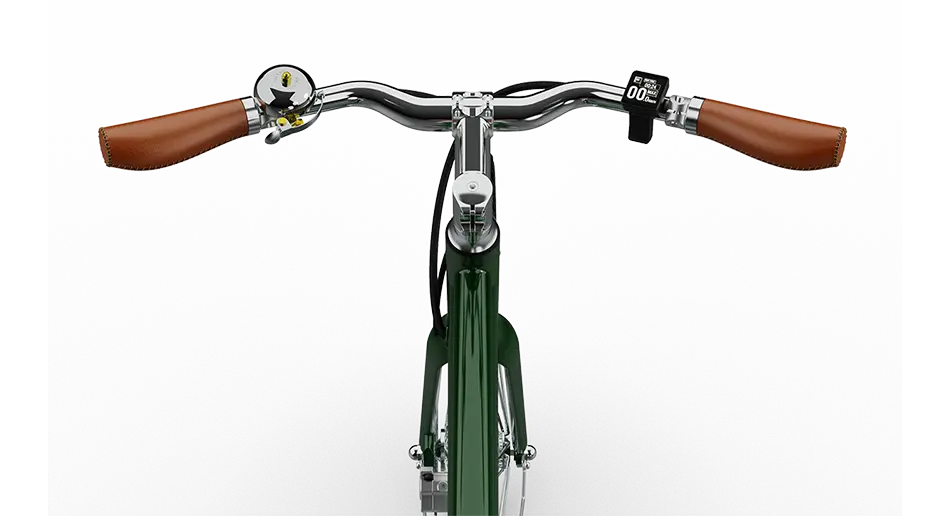

REACTIVE
The Legendre offers exceptional driving pleasure thanks to its torque sensor and its engine co-developed by Voltaire engineers.
The Legendre maintains the DNA of Voltaire bicycles, serving as the perfect ally for the daily lives of urban commuters: timeless design, user-friendly simplicity with a removable battery, and efficient electric assistance.
An electric bicycle that goes even further to captivate the most athletic city dwellers. Its look and dynamism make this model a unique electric bicycle: agile, maneuverable, and ergonomic. The performance of the Legendre will leave you speechless.
details
Technical characteristics
General
Price
from 2390€
Colours
Graphite Grey, British Racing Green, Midnight Blue and Almond Green
Size
One size 28” (for riders over 170cm)
Weight
21.9 kg
Frame
Aluminium 6061 T6 series
Fork
Aluminium 6061 T6 series
Certifications
EN-15194 (VAE) and EN-62133 (Battery)
Electric assistance
Assistance
3 levels, autonomy from 40 to 70 km
Battery
Seat tube, removable, 2.5 kg, 36 V, 360 Wh, Samsung 21700 lithium-ion cells
Motor
Rear hub co-developed by Voltaire, 1.5 kg, 250 W, 35 Nm (equivalent to 65 Nm in pedal motor)
Sensor
Torque sensor co-developed by Voltaire, located in the crankset, reads pedaling torque over 360° for instant motor reaction
Charge
Power charge in 2.5 hours, 36V 4A
Components
Transmission
By belt and aluminium pedal 58T, tension adjustment by excentric case, opening on the seatstays
Belt
Toptrans system, ensures cleanliness & convenience, high durability, maintenance-free, silent use
Brakes
Tektro hydraulic discs
Front light
Front LED light (100 lux)
Rear light
4-point LED display signature integrated in the mudguard
Bell
Crane bell, chrome plated, 55 mm
Wheels
28” wheels
Rims
28” MACH 1 double wall rims
Tyres
47-559 Schwalbe Road Cruiser Plus Green Compound tyres with 3 mm puncture protection
Mudguards
28” Bastia Parafanghi stainless steel mudguard
Wheel lock
AXA Solid Plus wheel lock
Central stand
Atranvélo central stand
Connectivity
On-board electronic display
A separate control screen, 1.3” OLED display with two buttons
Legendre Plus option
Expected release of the connected version in summer 2023. Possible retrofit on the unconnected version.
Accessories
Front basket
Stainless steel, maximum load 10 kg
Rear rack
Stainless steel, maximum load 27 kg
AXA DPI 110cm chain
Compatible with integrated wheel lock
